Overview

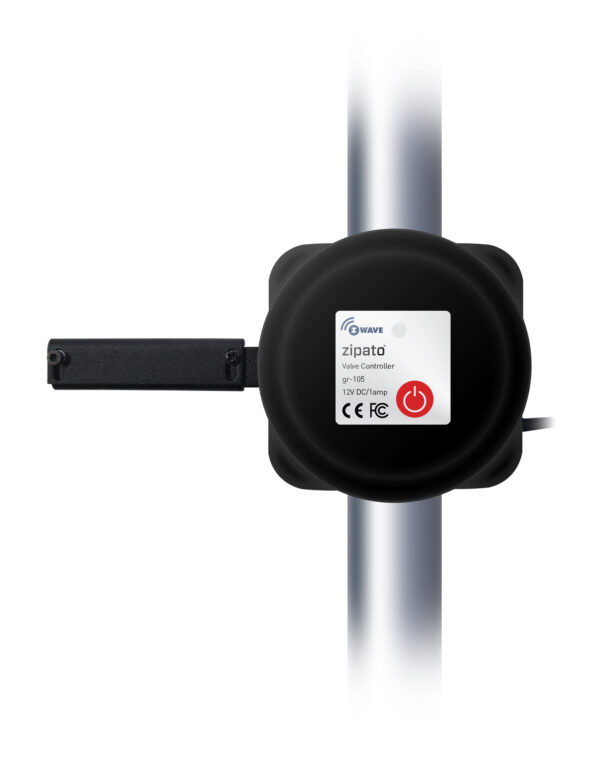

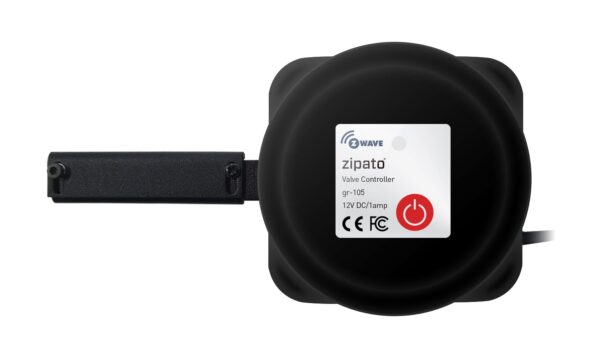

Zipato Valve Controller GR-105.EU.G adds remote shut-off control to a compatible existing quarter-turn water or gas valve. The retrofit actuator mounts over the valve handle and can be controlled through a European-frequency Z-Wave network or operated manually when required.
Key features
- Remote opening and closing of a compatible water or gas valve
- Z-Wave Plus communication and repeater function
- Manual override for local operation
- Retrofit installation without replacing the existing compatible valve
- High-torque actuator
Compatibility and application
Designed for compatible quarter-turn valves in water and gas shut-off applications. Confirm the valve geometry, available mounting space and installation requirements before fitting.
Technical specifications
| Specification | Value |
|---|---|
| Technical model | GR-105.EU.G |
| Protocol | Z-Wave Plus |
| EU frequency | 868.42 MHz |
| Rated supply | 12 V DC, 1 A |
| Wireless range | Up to 40 m |
| Valve pressure | 1.6 MPa |
| Opening time | 5–10 seconds |
| Closing time | 5–10 seconds |
| Torque | 30–60 kg·cm |
| Valve-controller dimensions | 145 Ă— 85 Ă— 74 mm |
| Valve-controller weight | 404 g |
Installation requirements
Installation must follow the official manual. Gas-valve applications must also comply with applicable safety regulations and be handled by an appropriately qualified person.
Documentation
| Document | Description | Link |
|---|---|---|
| Product manual | Installation, operation and technical reference for this product/model. | Download manual (PDF) |
